Wiring: Coinslot to Board

Now that these wirings are set -  “Power Adapter - Coinslot” and “Power Adapter - Board”, let’s connect the wires from the Coinslot to the Board.

Choose your board:

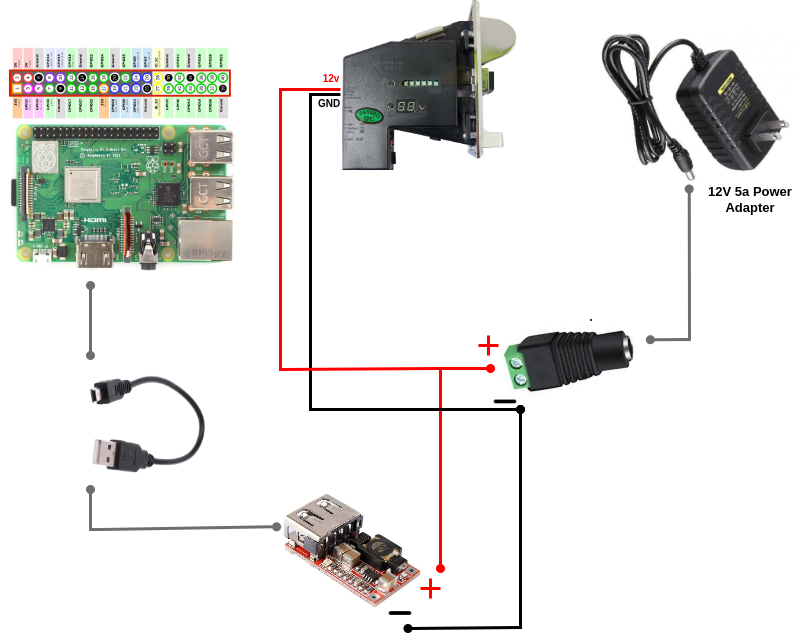

• Raspberry Pi










1. Connect the wire from the coinslot's COIN pin to the RPI board's Pin #3.
2. Connect the wire from the coinslot's SET pin to the RPI board's Pin #11.

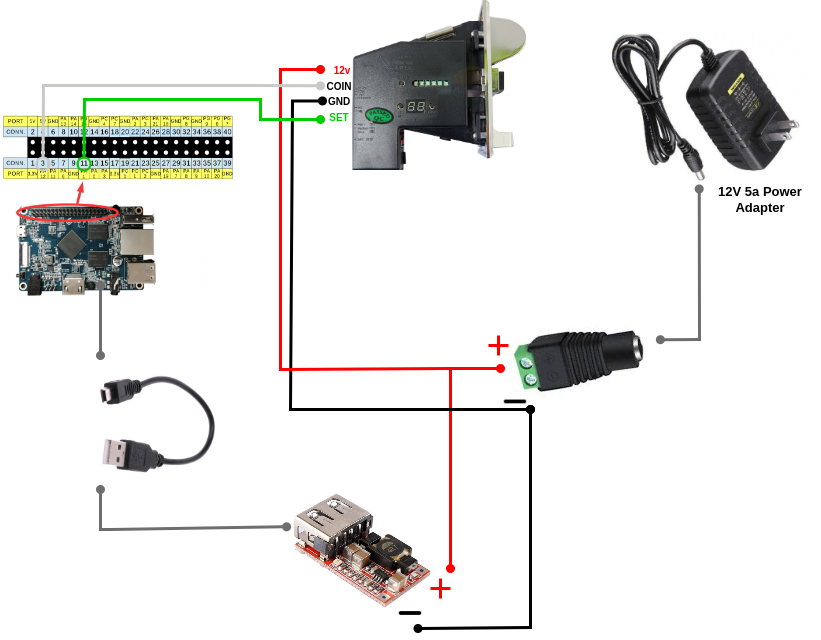

• Orange Pi


  Supported Orange Pi Models:

  • Orange Pi One
  • Orange Pi PC
  • Orange Pi One Plus
  • Orange Pi Zero



  1. Connect the wire from the coinslot's COIN pin to the OPI board's Pin #3.
  2. Connect the wire from the coinslot's SET pin to the OPI board's Pin #11.
